Description

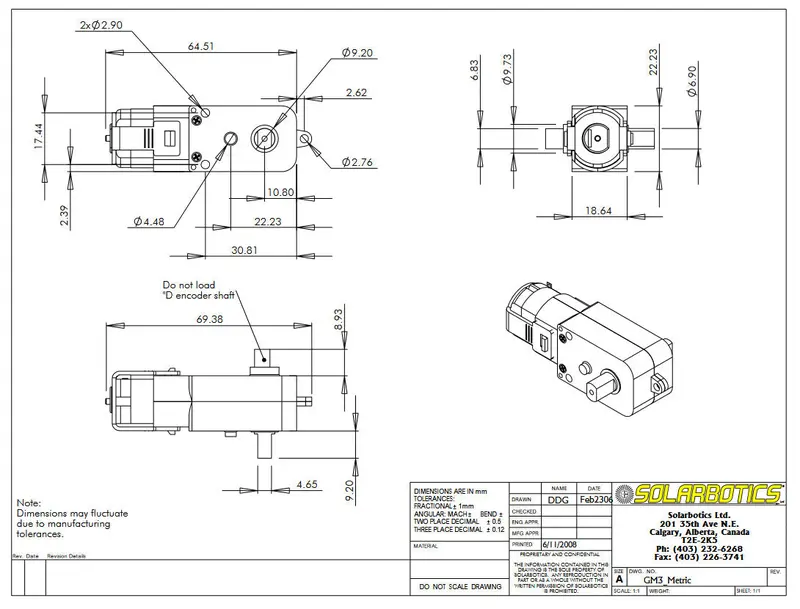

Gear Motor 3 224:1 90 Degree Shaft This 224:1 gear motor is very comparable to a hobby servo for power at a fraction of the cost! This model differs from the GM2 in that it has a 90 degree output shaft.This motor offers 48.61 in*oz of torque at 3V rotating 360 degreesevery 1.5 seconds (24 rpm just a hair slower than a servo) drawing400mA at stall (free running at 40mA). With a 7mm doubleflat output shaft(avoid using the D output it’s not meant to take rotational load)and a builtin clutch (limiting at 60 in*oz but easily locked) and builtin mounting screw holes this is why we like these motors! Overall dimensions are 70.1mm long x 22.3mm x 37.7mm(2.76) x (0.878) x long (1.48) including output shafts while only weighing 30.5grams or 1.08ounces.
- Description: 90 Degree Motor
- Gear Ratio: 224.00:1
- At 3 VoltsUnloaded RPM (3V): 24
- Unloaded Current (3V): 40 mA
- Stall Current (3V): 400 mA
- Stall Torque (3V): 48.61 in*oz
- At 6 VoltsUnloaded RPM (6V): 46
- Unloaded Current (6V): 50 mA
- Stall Current (6V): 733 mA
- Stall Torque (6V): 56.94 in*oz
- Length (mm): 70.00 mm
- Width (mm): 22.50 mm
- Height (mm): 37.00 mm
- Weight: 40.00 g
